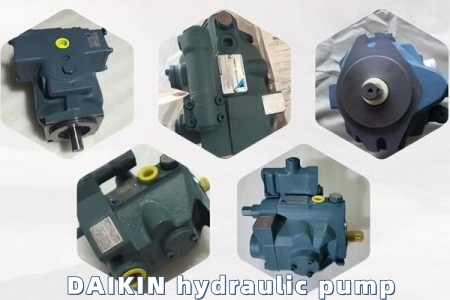

DAIKIN variable piston pump V series model

Basic Models (Core Specifications)

• V8: Theoretical discharge rate 8.0 cm³/rev

• V15: Theoretical discharge rate 14.8 cm³/rev (including V15 Type Y)

• V23: Theoretical discharge rate 23.0 cm³/rev

• V38: Theoretical discharge rate 37.7 cm³/rev

• V50: Theoretical discharge rate 51.6 cm³/rev

• V70: Theoretical discharge rate 69.8 cm³/rev

Common Complete Configuration Models

• V8A1RX-20

• V15A1R-95

• V15A1RY95

• V15A2R-95

• V15A2RX-95

• V15A3R-95

• V15A3RX-95

• V15C13RHX95

• V15C13RJAX-95

• V23A2LX

• V23SAJS-ARX-30

• V23A3RX-30

• V38A3R-95

• V38A4RX-95RC

• V38C13RJPX-80

• V38C14RJAX-95

• V38C14RJBX-95

• V38D12RAX-95

• V38D14RNX-95RC

• V38IRX-95

• V38SA3CRX-95

• V50XA3RX-20

• V50A3R-20

• V70A3RX-60

• V70A3R-70

Notes

• The design number in the model (such as 20, 30, 60, 95) is subject to change .

• There is also a European version of the V series, named J-V series, which has the same function but slight dimensional differences .

• The model configuration can be adjusted according to fluid type, control method, pressure adjustment range and other requirements .
